Long Life Span: 6000 Cycles
Battery Configuration: 2P16S 3.2v 100Ah LiFePo4 Prismatic Cell
Installation: Rack mounted or Ground mounted
Application: Home energy storage, Enterprise energy storage and Power backup, Data center energy storage
Minimun Order: 10 Set
Packaging Details: Wooden Box / Container
Supply Ability: 5000 Sets/Month
Place of Origin: China
Certifications: MSDS CE UN38.3 ROHS TUV IEC

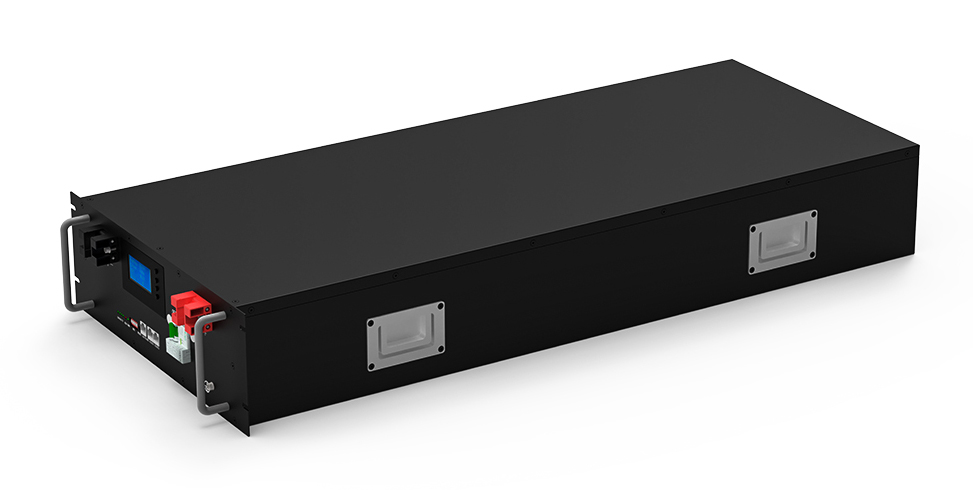

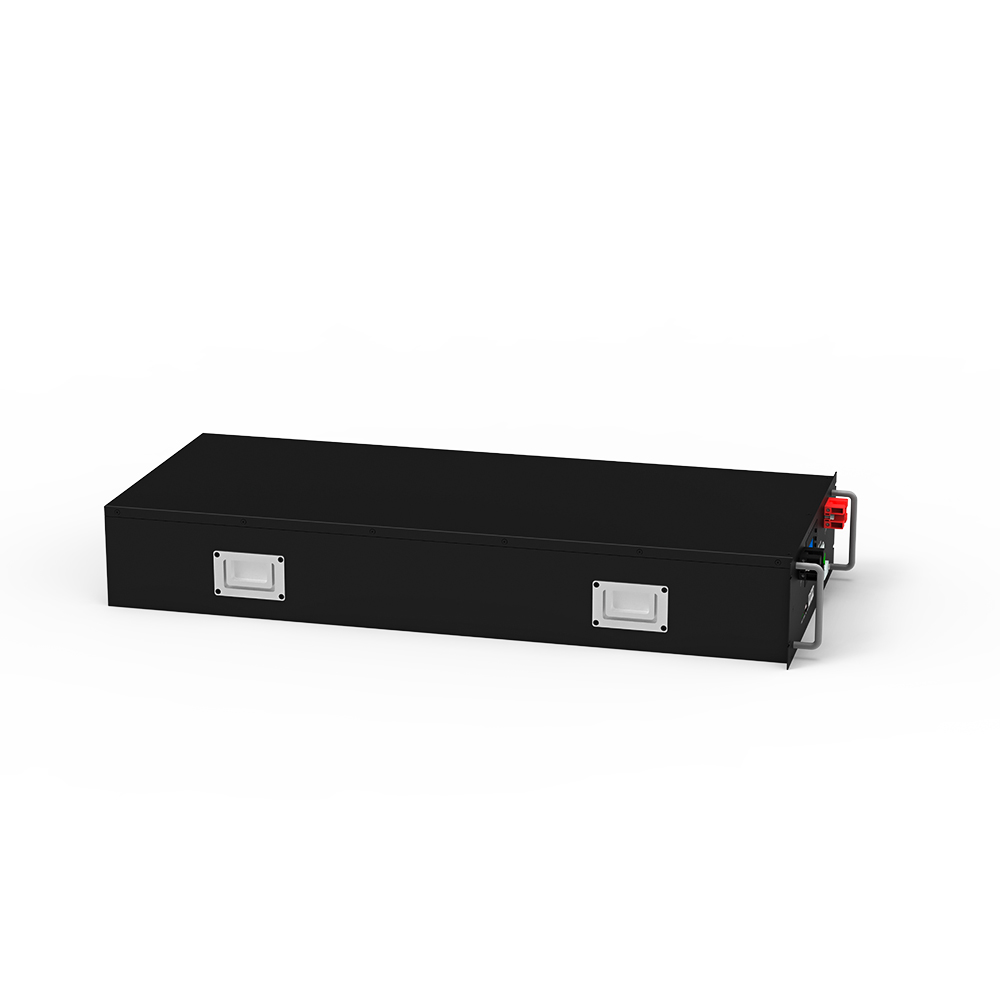

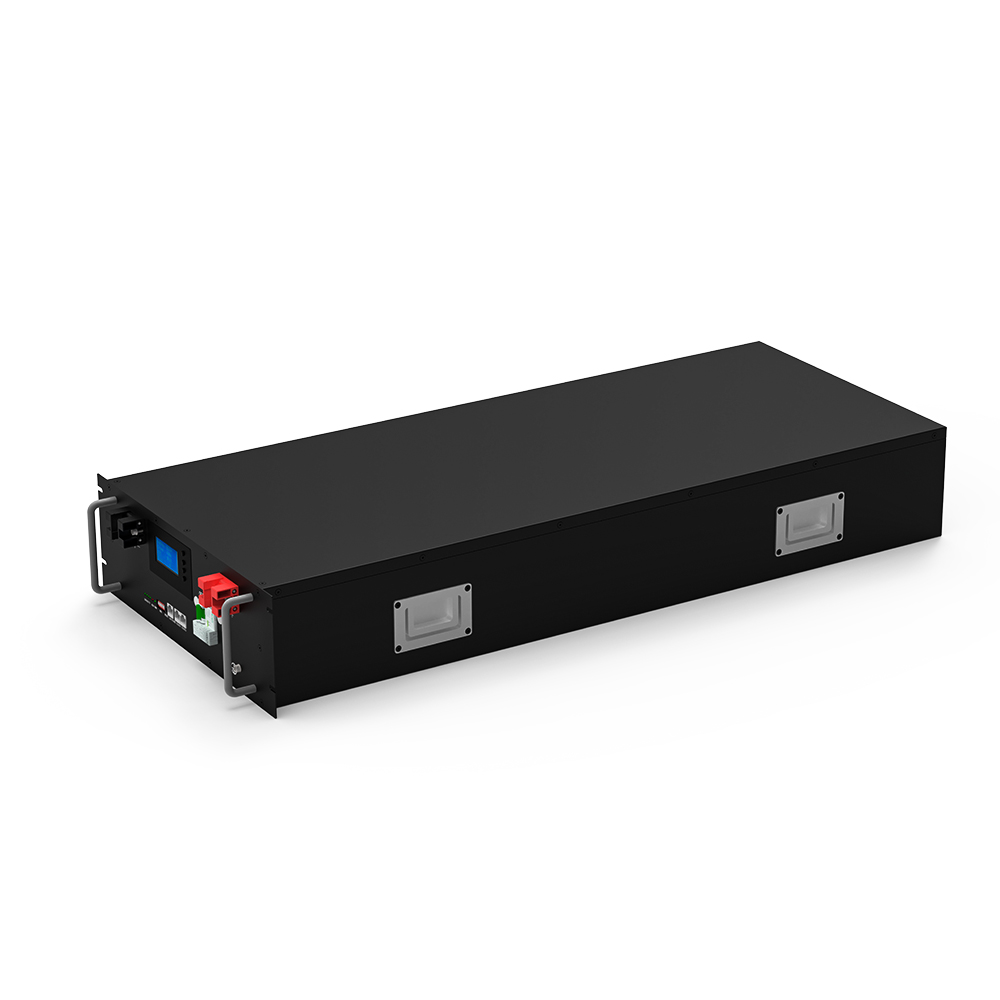

10.24 kWh Home Battery Backup Solar ESS with CAN/RS485 | VP
NILE-R-200
51.2 V
200Ah Capacity
100 KG
LFP
- Premium LiFePO4 Cells
- Wide Inverter Protocol Compatibility
- Intuitive LCD Display
- Intelligent Battery Management System
- Easy Maintenance
- High Scalability via Parallel Connection
Explore Victory Technology’s innovative energy solutions
for a sustainable future.
Product Features
- High-Capacity Configuration: Standard 51.2V 200Ah, provide a high 10.24kWh of energy density.
- Modular Rack-Mount Design: Scalable up to 16 Units in Parallel: Effortlessly expand capacity from 10kWh to 50kWh+ through simple stacking. This modular approach significantly reduces inventory pressure and allows for flexible project sizing.
- Universal Communication Interfaces: Equipped with CAN/RS485 ports, ensuring seamless protocol compatibility with all major global inverter brands.
- Comprehensive Safety Protection: Built-in advanced smart BMS (intelligent battery management system) provides protection against short circuits, overloading, over-charging, over-discharging, and extreme temperatures.

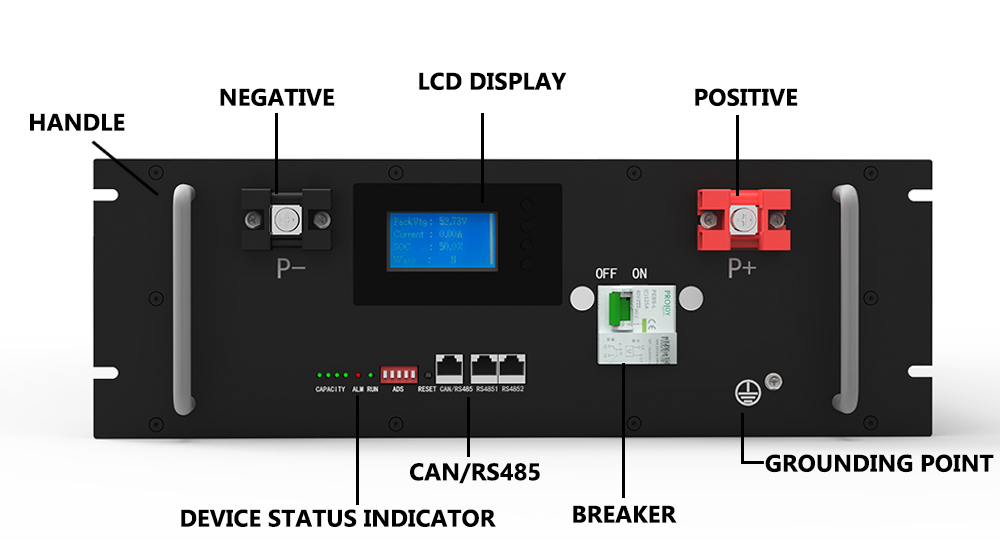

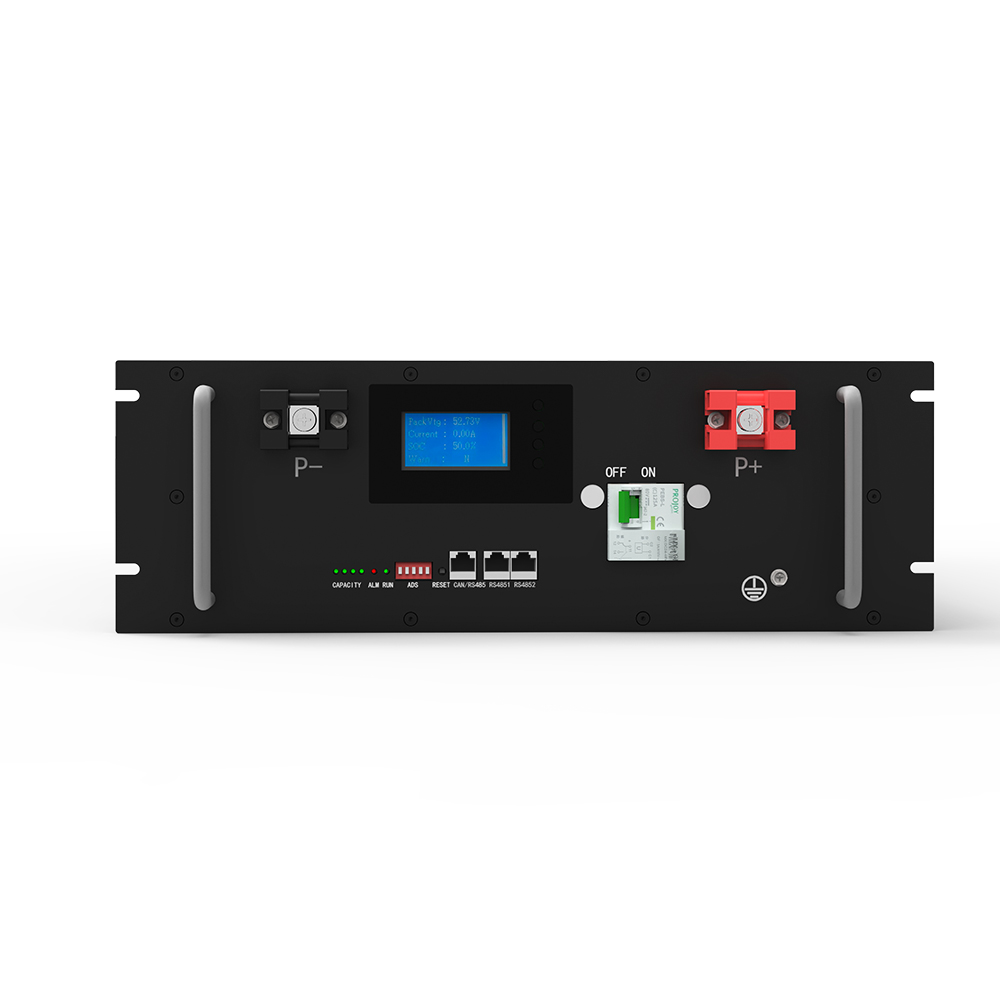

- Real-time Monitoring: Directly access SOC (State of Charge), voltage, and fault codes via the integrated screen to dramatically enhance maintenance efficiency.

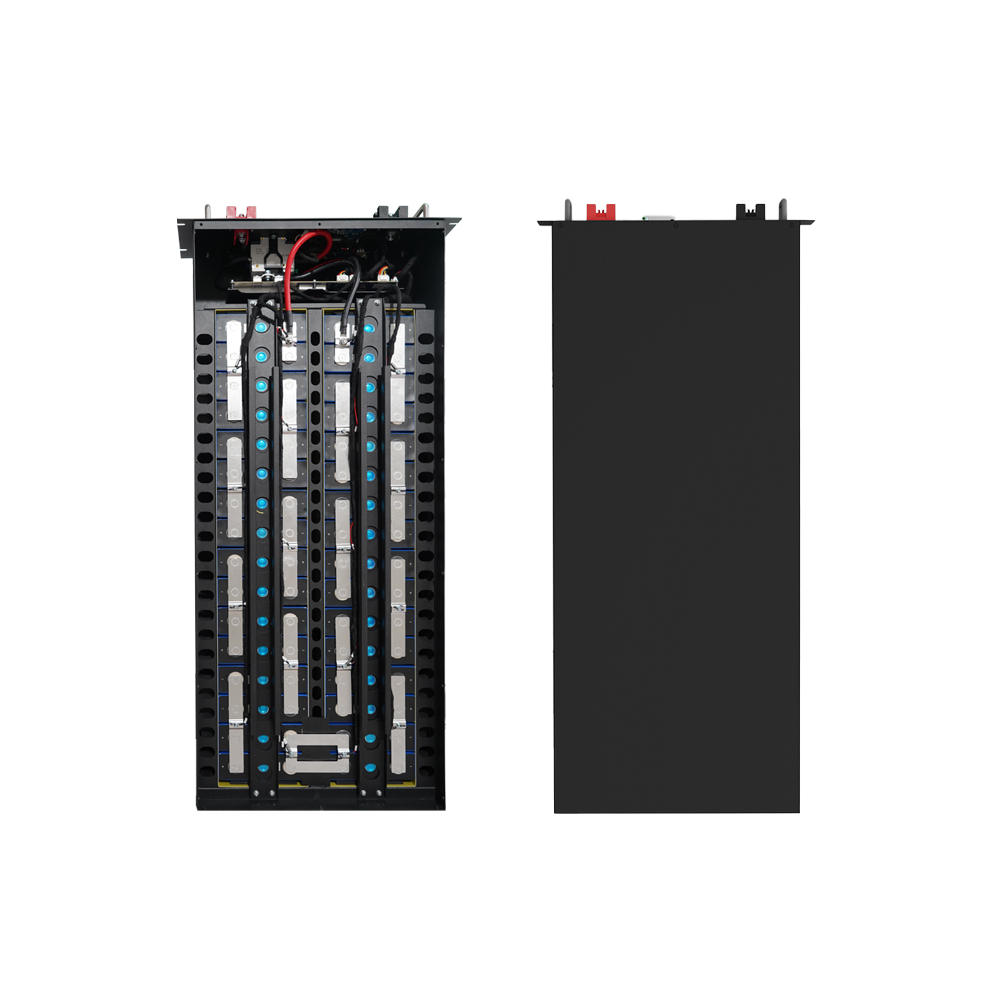

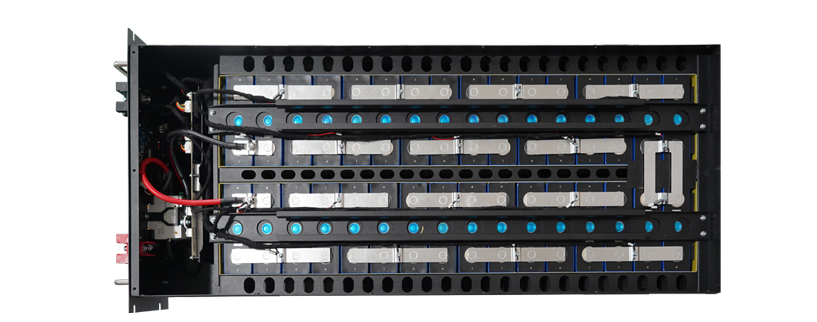

- Robust & Serviceable: The rugged rack structure minimizes logistics damage during transit. The design allows for the easy extraction of individual modules, eliminating the need to dismantle the entire system as required by integrated "all-in-one" units.
Product Description
Powered by premium LiFePO4 cells with 6,000 cycles, this 51.2V 200Ah (10.24kWh) rack-mounted energy storage system delivers reliable backup power day or night, supporting both grid-tied and off-grid configurations for homes, businesses, and critical infrastructure.
Its modular design supports parallel connection of up to 16 units, allowing seamless capacity expansion from 10kWh to over 50kWh—reducing inventory pressure while offering flexible project scalability. The rugged rack structure minimizes transit damage, while individual module extraction eliminates the need for full-system disassembly during maintenance.
Equipped with CAN and RS485 communication ports, the system ensures broad compatibility with major inverter brands. The built-in smart BMS provides comprehensive protection against short circuits, overcharge, over-discharge, overcurrent, and extreme temperatures. Real-time monitoring is simplified with an integrated LCD display showing SOC, voltage, and fault codes for efficient maintenance.
Product Specifications
| Product Performance | NILE-R-200 |
| Standard Voltage | 51.2V |
| Rated Capacity | 200 AH |
| Rated Power | 10.24 kWh |
| Operating Voltage | 42V-58.4V |
| Standard Charging Current | 100A |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Operating Temperature Range | 0~40℃ ( Charge ) -20~40℃ ( Discharge ) |
| Storage Temperature | -10℃~35℃ (1 Month) 25±2℃ (3 Month ) 65%±20%RH |
| Communication | CAN/RS485 |
| Cycle Life | 6000 |
| Size(L*W*H) | 1044*430*160mm |
| Weight | 100kg |
| High | 0-3000 |
| Water Proof Grade | IP20 |
| Humidity Range | 5~80% |
FAQ – 51.2V / 10.24kWh LiFePO4 Home Battery Backup Solar Energy Storage System
1. What type of battery technology does this ESS use, and what are its advantages?
The system uses high-quality Lithium Iron Phosphate (LiFePO₄) battery cells. Compared to conventional batteries, these offer higher energy density, more reliable performance, and a significantly longer service life, certified for up to 6,000 cycles ( @25℃ 50A charge and discharge current 70% standard capacity 80 % DOD ).
2. Can this 200AH energy storage system power high-load household appliances?
Yes. The system supports high-current operations of up to 100A for both charging and discharging. This allows it to seamlessly power heavy-duty appliances such as refrigerators, air conditioning units, and washing machines.
3. How does the system ensure operational safety and monitoring?
Safety is managed through an intelligent BMS (Battery Management System) and integrated RS485/CAN bus interfaces. The system provides real-time monitoring and protection against overcharge, over-discharge, short-circuits, and thermal anomalies. Additionally, it features a pure sine wave output to protect sensitive electronic equipment.
4. What are the environmental and temperature operating limits for this 51.2V home energy storage system?
The product is designed for versatility with an IP20-rated housing. It supports charging between 0°C and 40°C and discharging from -20°C to 40°C. It remains stable in humidity levels ranging from 5% to 80%, making it reliable for various climates.
5. What scenarios or energy configurations is this 48V 200Ah lithium battery system suitable for?
The system supports both grid-connected and off-grid configuration modes. Ideal for renewable energy integration (solar/wind), energy-independent residential, small & medium-sized enterprises,medical equipment backup, outdoor workstations, and data center backup applications.
