Residential ESS

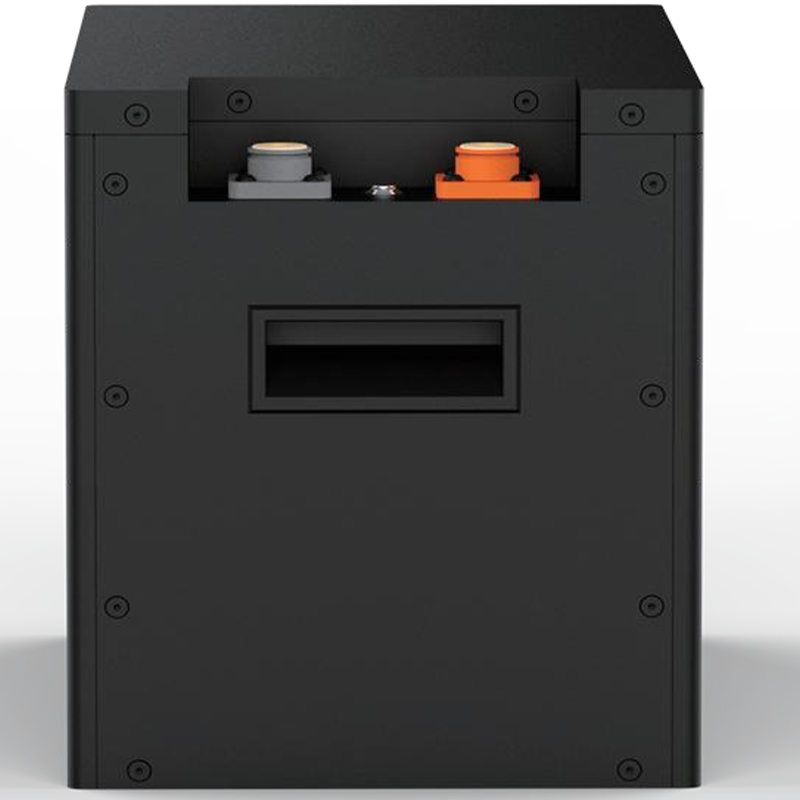

Residential ESS - FT12-280
Residential ESS - FT12-280.1

Residential ESS -FT12-280

FT12-280
  • High quality lithium iron phosphate
  • Easy to install and use
  • Built-in BMS intelligent protection
  • Compatible with mainstream inverters
  • productshow-icon01
  • CE
  • MSDS
  • IEC
  • IP20

Equipment Features

  • Extreme Safety Protection: Featuring high-quality lithium iron phosphate (LiFePO₄) battery cells with up to 6000 cycles. Integrated RS485 and CAN bus communication interfaces.  Built-in BMS for real-time monitoring of abnormal data(overcharge/over-discharge/short circuit/temperature) .
  • Flexible & Efficient Design: Supporting inverter protocol switching and compatible with various inverter systems; Low power consumption and high-capacity energy storage， supporting up to 200A continuous discharge.
  • Outstanding Environmental Adaptability‌: Charging working 0℃~40℃, discharging working -20℃~40℃, IP20 protection level with humidity resistance 5%~95%.
  • Certified Safety Assurance: Fully compliant with CE, IEC, UN38.3 and MSDS international standards.

Explore Victory Technology’s innovative energy solutions
for a sustainable future.

Product Features

  • Maximum 200A charge and discharge current
  • High-capacity energy storage
  • Longer usage time
  • Safety and Environmental Protection
  • High cycle count（6000）
  • Intelligent BMS system
  • High-quality battery cell
  • Optional communication(RS485 & CAN )

Product Description

This product is engineered for premium energy storage applications, featuring high-quality lithium iron phosphate (LiFePO₄)  battery cells, that deliver higher energy density, more reliable performance and longer service life than conventional batteries.
The system supports high-current operations up to 100A for both charging and discharging, enabling seamless power supply for high-load appliances including refrigerators, air conditioning units, and washing machines. Pure sine wave output ensures power stability and  equipment protection.

Our products integrate RS485 and CAN bus communication interfaces, complemented by an intelligent BMS that provides real-time monitoring of overcharge, over-discharge, short-circuit, and thermal anomalies to guarantee operational safety and system efficiency. The optimum operating temperature ranges support charging from 0°C to 40°C and discharging from -20°C to 40°C, covering most climatic requirements. Certified to deliver 6,000 cycles at 80% depth of discharge (DOD), the product features an IP20-rated housing that maintains operational integrity across 5-95% humidity ranges, ensuring reliable performance under extreme environmental conditions.

Suitable for energy-independent households, off-grid installations, critical appliance backup power, medical equipment power supply, and outdoor workstation electrification, etc. This product is your optimal choice for efficient, stable and sustainable energy management.

Product Specifications

PRODUCT PERFORMANCE FT12-280
STANDARD VOLTAGE 12.8V
RATED CAPACITY 280AH
OPERATING VOLTAGE 10.4V-14.4V
STANDARD CHARGING CURRENT 100A
MAXIMUM CHARGE/DISCHARGE CURRENT 200A
OPERATING TEMPERATURE RANGE 0~40℃(CHARGE)  -20~40℃(DISCHARGE)
STORAGE TEMPERATURE -10℃~35℃(1MONTH) 25±2℃(3MONTH)65%±20%RH
CYCLE LIFE 6000 CYCLES @25℃ 50A CHARGE AND DISCHARGE CURRENT 70% STANDARD CAPACITY 80%DOD
COMMUNICATION CAN&RS485
WATER PROOF GRADE IP20
HUMIDITY RANGE 5~95%
NET SIZE  400*220*260MM
NET WEIGHT 34.2±3KG

Application Scenario
